Airbus A320

The A320 is the model that gives the family its name, 123 ft 3 in long. Airbus's planning layout seats 150 in two classes, 12 in first and 138 in economy, or 180 in a single high-density class, and modifications raise its certified limit to 195 passengers. Its heaviest weight variant takes off at 171,961 pounds. Engines are CFM International CFM56-5 or IAE V2500. With sharklets it spans 117 ft 5 in; aircraft with the original wing-tip fences span 111 ft 11 in. The A320neo followed it in production.

Seats
About 150 in two classes (up to 195)
Engines
Two CFM International CFM56-5 or IAE V2500 turbofans under the wings
Max takeoff weight
172,000 lb (78,000 kg)

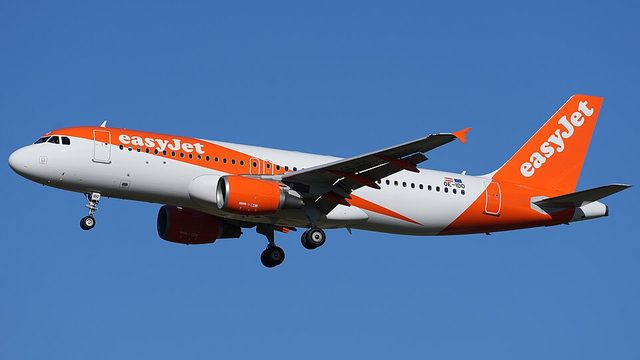

Airbus A320
Photo: MarcelX42, CC BY-SA 4.0
Airbus A320 seen from above: length 123 ft 3 in (37.57 m), wingspan 117 ft 5 in (35.80 m)
Airbus A320 seen from the side: height 39 ft 8 in (12.08 m)
Drawings: cwsi.net, from published dimensions (schematics, not to exact detail)

Photos from members

No member photos of this aircraft yet. Be the first to add one.

Specifications

Length123 ft 3 in (37.57 m)
Wingspan117 ft 5 in (35.80 m)
Height39 ft 8 in (12.08 m)
Fuselage width13 ft 0 in (3.95 m)
Ceiling39,800 ft (12,100 m)
Fuel capacity6,400 US gal (24,209 L)
StatusIn service
Type codesICAO A320; IATA 320

Who flies it now

609 flights by other operators

From flights seen in US airspace in the last 7 days (public flight data).

In the air now

Flights of this type in the air now, from public flight data.

Show them on the live map

Sources
