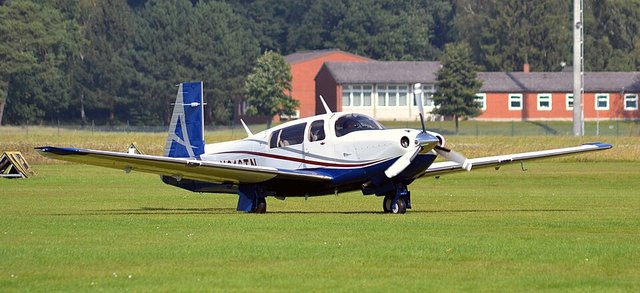

Mooney M20S Eagle, M20TN Acclaim and M20V Acclaim Ultra
This page covers the last M20s, all with six-cylinder Continental engines: the M20S Eagle of 1999, with a 244 hp IO-550-G and code M20P, and the turbocharged M20TN Acclaim of 2006 and M20V Acclaim Ultra of 2017, with a 280 hp TSIO-550-G and code M20T. The figures are the Acclaim's, from the FAA data sheet: a maximum takeoff weight of 3,368 pounds, 89 US gallons of usable fuel and a maximum operating altitude of 25,000 feet. All seat four.
- Seats
- About 4
- Engines
- One piston engine in the nose: Continental TSIO-550-G (Acclaim); IO-550-G (Eagle)
- Max takeoff weight
- 3,400 lb (1,528 kg)
Photos from members
No member photos of this aircraft yet. Be the first to add one.
Specifications
| Fuselage width | 3 ft 9 in (1.15 m) |
|---|---|
| Ceiling | 25,000 ft (7,600 m) |
| Fuel capacity | 90 US gal (337 L) |
| Status | In service |
| Type codes | ICAO M20P, M20T |
Private aircraft show specs only. No flight data is shown for them.
