Mooney M20R Ovation

The M20R Ovation, approved by the FAA in 1994, is the M20 with a 280 hp Continental IO-550-G and no turbocharger, also sold as the Ovation 2 and Ovation 3. The FAA data sheet gives a maximum takeoff weight of 3,368 pounds and 89 US gallons of usable fuel. The EASA data sheet gives its span, length and height, the same as the M20M, and a maximum operating altitude of 20,000 feet. It seats four, has retractable gear and is filed under ICAO code M20P.

Seats
About 4
Engines
One piston engine in the nose: Continental IO-550-G
Max takeoff weight
3,400 lb (1,528 kg)

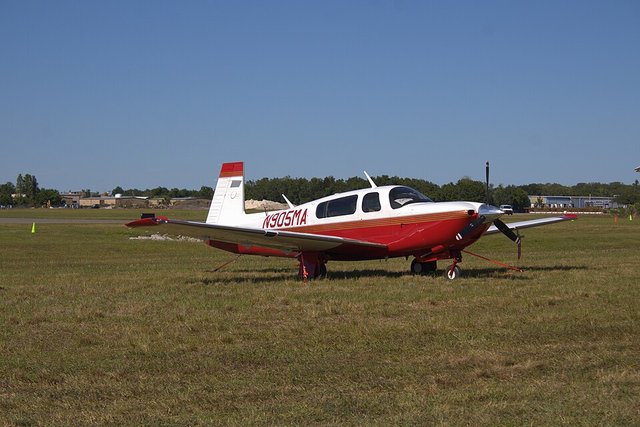

Mooney M20R Ovation
Photo: ZLEA, CC BY-SA 4.0
Mooney M20R Ovation seen from above: length 26 ft 9 in (8.15 m), wingspan 36 ft 1 in (11.00 m)
Drawing: cwsi.net, from published dimensions (a schematic, not to exact detail)

Photos from members

No member photos of this aircraft yet. Be the first to add one.

Specifications

Length26 ft 9 in (8.15 m)
Wingspan36 ft 1 in (11.00 m)
Height8 ft 4 in (2.54 m)
Fuselage width3 ft 9 in (1.15 m)
Ceiling20,000 ft (6,100 m)
Fuel capacity90 US gal (337 L)
StatusIn service
Type codesICAO M20P
