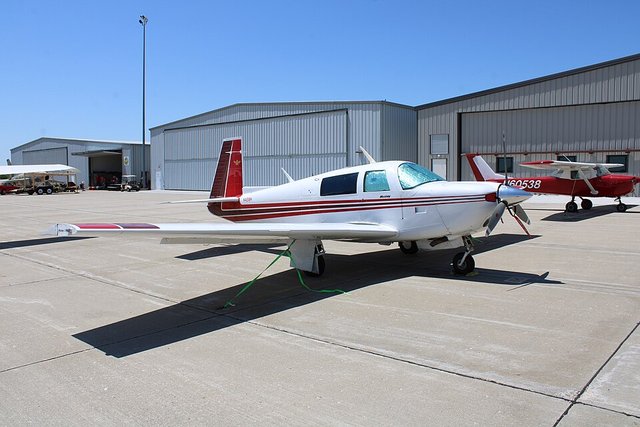

Mooney M20J 201, MSE and Allegro
The M20J, approved by the FAA in 1976 and sold as the 201, the 205, the MSE and the Allegro, is the M20 with a 200 hp fuel-injected Lycoming IO-360. The figures here come from the FAA data sheet: an IO-360-A3B6D, a maximum weight of 2,740 pounds, rising to 2,900 pounds on the last aircraft built, and 64 US gallons of usable fuel in two wing tanks. It seats four, has retractable gear and is filed under ICAO code M20P.
- Seats
- About 4
- Engines
- One piston engine in the nose: Lycoming IO-360-A3B6D
- Max takeoff weight
- 2,700 lb (1,243 kg)
Photos from members
No member photos of this aircraft yet. Be the first to add one.
Specifications
| Fuselage width | 3 ft 7 in (1.10 m) |
|---|---|
| Fuel capacity | 60 US gal (242 L) |
| Status | In service |
| Type codes | ICAO M20P |
Private aircraft show specs only. No flight data is shown for them.
