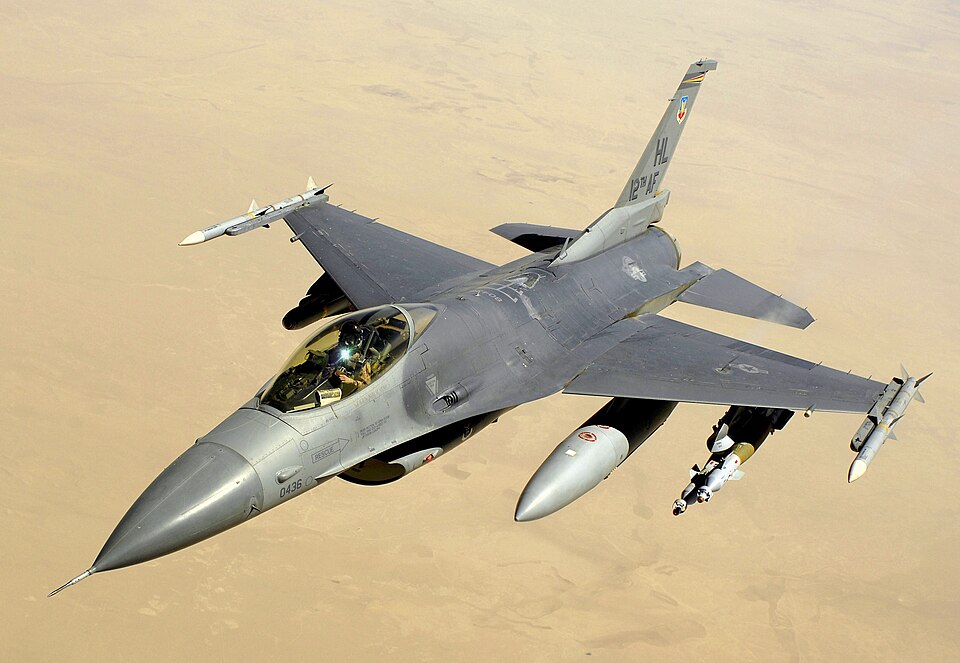

Lockheed Martin F-16C/D Fighting Falcon
The F-16C is the single-seat and the F-16D the two-seat version of the Fighting Falcon with the newer cockpit controls and displays; the F-16D flies with one or two crew. One engine, either a Pratt and Whitney F100 or a General Electric F110, gives about 27,000 pounds of thrust and a speed of Mach 2 at altitude. The Air Force quotes a ferry range of more than 2,002 miles, 1,740 nautical miles, a ceiling above 50,000 feet and 7,000 pounds of internal fuel. Active units and many Guard and Reserve units have converted to the C and D models.
- Range
- 2,000 miles (1,740 nm, 3,220 km) unrefueled
- Engines
- One Pratt and Whitney F100-PW-200, -220 or -229, or General Electric F110-GE-100 or -129 turbofan in the fuselage
- Max takeoff weight
- 37,500 lb (17,009 kg)
Photos from members
No member photos of this aircraft yet. Be the first to add one.
Specifications
| Length | 49 ft 5 in (15.06 m) |
|---|---|
| Wingspan | 32 ft 8 in (9.96 m) |
| Height | 16 ft 0 in (4.88 m) |
| Ceiling | 50,000 ft (15,200 m) |
| Entry into service | 1981 |
| Status | In service |
| Type codes | ICAO F16 |
Who flies it
- US Air Force
- Air National Guard
- Air Force Reserve Command
Service branches, from the services' own fact sheets. No flight data is shown for military aircraft.
