Embraer E170

The E170 is the smallest of Embraer's E-Jets; on its type certificate it is the ERJ 170-100. It is 98 ft 1 in long with an 85 ft 4 in wingspan and is certified for up to 80 passengers, seated in pairs on each side of one aisle. Two General Electric CF34-8E turbofans hang under the low wing, and the aircraft is cleared to fly as high as 41,000 feet. Embraer quotes a range of up to 2,150 nautical miles with every seat filled in a single-class cabin. The stretched E175 was built with the same engines and, at first, the same wing, and pilots fly both on one type rating.

Range
2,475 miles (2,150 nm, 3,980 km)
Engines
Two General Electric CF34-8E5 or CF34-8E5A1 turbofans under the wings
Max takeoff weight
85,100 lb (38,600 kg)

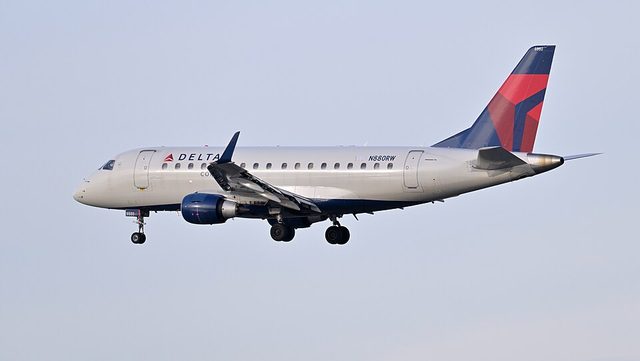

Embraer 170
Photo: 4300streetcar, CC BY 4.0
Embraer E170 seen from above: length 98 ft 1 in (29.90 m), wingspan 85 ft 4 in (26.00 m)
Drawing: cwsi.net, from published dimensions (a schematic, not to exact detail)

Photos from members

No member photos of this aircraft yet. Be the first to add one.

Specifications

Length98 ft 1 in (29.90 m)
Wingspan85 ft 4 in (26.00 m)
Height32 ft 3 in (9.82 m)
Fuselage width9 ft 11 in (3.01 m)
Ceiling41,000 ft (12,500 m)
StatusIn service
Type codesICAO E170; IATA E70
