Bombardier CRJ-700

The CRJ700, certified as the CL-600-2C10, stretched the Canadair Regional Jet to about 70 seats. At 106 ft 1 in it is more than 18 feet longer than the CRJ200, its wing spans 76 ft 3 in, and General Electric CF34-8C engines replace the smaller CF34-3. The planning manual's standard cabin has 70 seats, while the certificate allows up to 78 in the Series 702. With the heavier weight option it takes off at up to 34,019 kg. Its usable fuel is 10,989 liters, and it is certified to 41,000 feet.

Engines
Two General Electric CF34-8C1 or CF34-8C5B1 turbofans at the tail
Max takeoff weight
75,000 lb (34,019 kg)

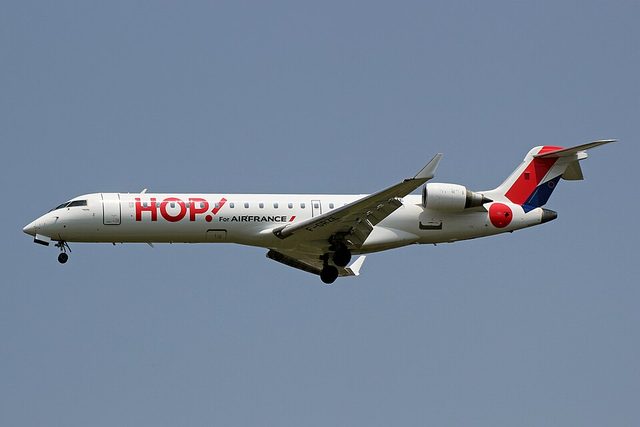

Bombardier CRJ700
Photo: Bene Riobo, CC BY-SA 3.0
Bombardier CRJ-700 seen from above: length 106 ft 1 in (32.34 m), wingspan 76 ft 3 in (23.25 m)
Bombardier CRJ-700 seen from the side: height 24 ft 8 in (7.51 m)
Drawings: cwsi.net, from published dimensions (schematics, not to exact detail)

Photos from members

No member photos of this aircraft yet. Be the first to add one.

Specifications

Length106 ft 1 in (32.34 m)
Wingspan76 ft 3 in (23.25 m)
Height24 ft 8 in (7.51 m)
Fuselage width8 ft 10 in (2.69 m)
Ceiling41,000 ft (12,500 m)
Fuel capacity2,900 US gal (10,989 L)
StatusIn service
Type codesICAO CRJ7; IATA CR7
