Aircraft › Boeing › Boeing 777 › Boeing 777 Freighter

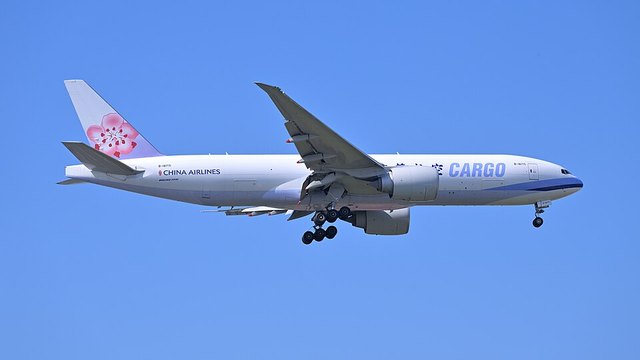

Boeing 777 Freighter
The 777 Freighter, or 777F, is the cargo jet built on the 777-200LR, with the same 209 ft 1 in fuselage, 212 ft 7 in wing and GE90 engines, but no cabin windows. Boeing says it can carry a payload of 224,900 pounds over 4,970 nautical miles. Together, the main deck and the lower holds hold about 22,400 cubic feet of cargo. It takes off at up to 766,800 pounds. It is filed under the ICAO code B77L, the same as the passenger 777-200LR, and Boeing still offers it new.
- Range
- 5,720 miles (4,970 nm, 9,200 km) with maximum payload
- Cruise speed
- Mach 0.84, 482 knots (890 km/h)
- Payload
- 225,000 lb (102,010 kg)
- Engines
- Two General Electric GE90-110B1 or GE90-115B turbofans under the wings
- Max takeoff weight
- 767,000 lb (347,814 kg)
Photos from members
No member photos of this aircraft yet. Be the first to add one.
Specifications
| Length | 209 ft 1 in (63.73 m) |
|---|---|
| Wingspan | 212 ft 7 in (64.80 m) |
| Height | 62 ft 4 in (18.99 m) |
| Fuselage width | 20 ft 4 in (6.20 m) |
| Ceiling | 43,100 ft (13,100 m) |
| Fuel capacity | 47,890 US gal (181,283 L) |
| Status | In service |
| Type codes | ICAO B77L |
Who flies it now
These are flights filed as B77L (777-200LR or 777 Freighter): one type code covers both, so they can include either. How they differ
1,028 flights by other operators
From flights seen in US airspace in the last 7 days (public flight data).
In the air now
Filed as B77L (777-200LR or 777 Freighter)
Flights of this type in the air now, from public flight data.
