Boeing 737 MAX 9

The 737-9, sold as the 737 MAX 9, is the same length as the 737-900ER, 138 ft 2 in. Boeing's planning layout seats 193 in two classes, and up to 220 in a single class. Boeing quotes a range of up to 3,300 nautical miles. Like the rest of the series it has two CFM LEAP-1B engines and split winglets, with a span of 117 ft 10 in, and its take-off weight goes up to 194,700 pounds. The larger 737-10 is a further stretch of the same design.

Range
3,800 miles (3,300 nm, 6,110 km)
Seats
About 193 in two classes (up to 220)
Engines
Two CFM International LEAP-1B turbofans under the wings
Max takeoff weight
195,000 lb (88,314 kg)

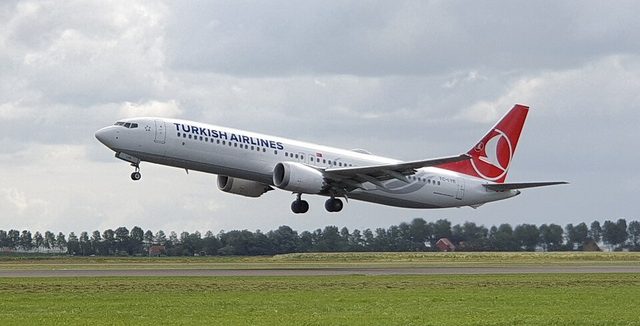

Boeing 737 MAX 9
Photo: Robbie Klinkenberg, CC BY-SA 4.0
Boeing 737 MAX 9 seen from above: length 138 ft 2 in (42.11 m), wingspan 117 ft 10 in (35.92 m)
Boeing 737 MAX 9 seen from the side: height 40 ft 8 in (12.40 m)
Top view: cwsi.net, from published dimensions (a schematic, not to exact detail). Side view: cwsi.net

Photos from members

No member photos of this aircraft yet. Be the first to add one.

Specifications

Length138 ft 2 in (42.11 m)
Wingspan117 ft 10 in (35.92 m)
Height40 ft 8 in (12.40 m)
Fuselage width12 ft 4 in (3.76 m)
Ceiling41,000 ft (12,500 m)
Fuel capacity6,820 US gal (25,816 L)
StatusIn service
Type codesICAO B39M; IATA 7M9
