Boeing 737 MAX 8

The 737-8, sold as the 737 MAX 8, is the MAX counterpart of the 737-800 and is 129 ft 6 in long, the same as the older jet. Boeing's planning layout seats 178 in two classes, or 189 in a single class, and Boeing quotes a range of up to 3,500 nautical miles. It has two CFM LEAP-1B engines in place of the 737-800's CFM56, and its split winglets give a span of 117 ft 10 in. A higher-density version with an extra pair of mid-cabin exits is built as the 737-8-200.

Range
4,030 miles (3,500 nm, 6,480 km)
Seats
About 178 in two classes (up to 189)
Engines
Two CFM International LEAP-1B turbofans under the wings
Max takeoff weight
182,000 lb (82,644 kg)

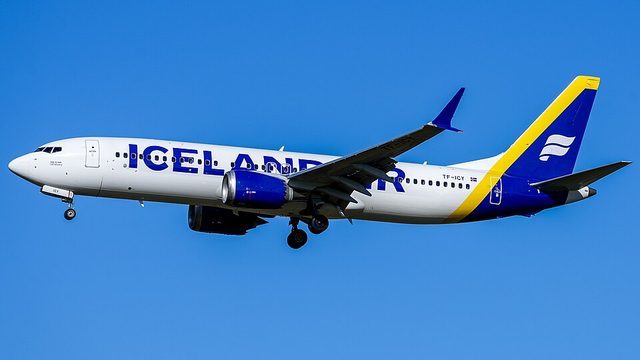

Boeing 737 MAX 8
Photo: MarcelX42, CC BY-SA 4.0
Boeing 737 MAX 8 seen from above: length 129 ft 6 in (39.47 m), wingspan 117 ft 10 in (35.92 m)
Boeing 737 MAX 8 seen from the side: height 40 ft 10 in (12.45 m)
Drawings: cwsi.net, from published dimensions (schematics, not to exact detail)

Photos from members

No member photos of this aircraft yet. Be the first to add one.

Specifications

Length129 ft 6 in (39.47 m)
Wingspan117 ft 10 in (35.92 m)
Height40 ft 10 in (12.45 m)
Fuselage width12 ft 4 in (3.76 m)
Ceiling41,000 ft (12,500 m)
Fuel capacity6,820 US gal (25,816 L)
StatusIn service
Type codesICAO B38M; IATA 7M8
