Boeing 737-800

The 737-800 is the Next Generation 737 with a fuselage slightly longer than the 737-400's and the new wing, stabilizer and tail of the series. It is 129 ft 6 in long. Boeing's planning layout seats 160 in two classes, or up to 184 in economy only, and its heaviest version can take off at 174,200 pounds. Two CFM56-7B engines power it, and winglets stretch its span to 117 ft 5 in. Boeing also converts passenger 737-800s into freighters, the 737-800BCF, which load cargo through a large door on the main deck.

Seats
About 160 in two classes (up to 184)
Engines
Two CFM International CFM56-7B turbofans under the wings
Max takeoff weight
174,000 lb (79,015 kg)

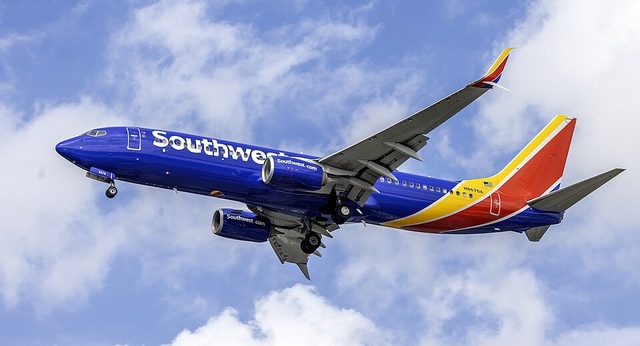

Boeing 737-800
Photo: Acroterion, CC BY-SA 4.0
Boeing 737-800 seen from above: length 129 ft 6 in (39.47 m), wingspan 117 ft 5 in (35.79 m)
Boeing 737-800 seen from the side: height 41 ft 2 in (12.55 m)
Drawings: cwsi.net, from published dimensions (schematics, not to exact detail)

Photos from members

No member photos of this aircraft yet. Be the first to add one.

Specifications

Length129 ft 6 in (39.47 m)
Wingspan117 ft 5 in (35.79 m)
Height41 ft 2 in (12.55 m)
Fuselage width12 ft 4 in (3.76 m)
Ceiling41,000 ft (12,500 m)
Fuel capacity6,870 US gal (26,024 L)
StatusIn service
Type codesICAO B738; IATA 738
