Boeing 717-200

The 717-200 is the only version of the 717, certified by the FAA in September 1999. Boeing's planning layout seats 106 in two classes, and it is certified for up to 134 passengers. Boeing gives a range of about 2,000 miles with 106 passengers on board. Two BMW Rolls-Royce BR715 engines sit on the rear fuselage, rated at 18,500 pounds of thrust, or 21,000 pounds on the high gross weight option. An optional airstair under the front door lets it board at airports with no jet bridge or stairs.

Seats
About 106 in two classes (up to 134)
Engines
Two BMW Rolls-Royce BR715 turbofans at the tail
Max takeoff weight
121,000 lb (54,884 kg)

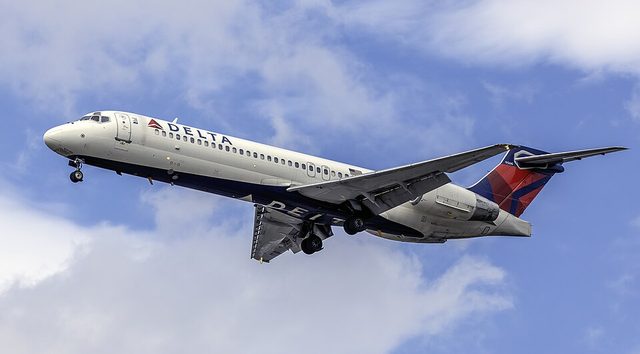

Boeing 717-200
Photo: Acroterion, CC BY-SA 4.0
Boeing 717-200 seen from above: length 124 ft 0 in (37.80 m), wingspan 93 ft 4 in (28.45 m)
Boeing 717-200 seen from the side: height 29 ft 8 in (9.04 m)
Drawings: cwsi.net, from published dimensions (schematics, not to exact detail)

Photos from members

No member photos of this aircraft yet. Be the first to add one.

Specifications

Length124 ft 0 in (37.80 m)
Wingspan93 ft 4 in (28.45 m)
Height29 ft 8 in (9.04 m)
Fuselage width11 ft 0 in (3.35 m)
Fuel capacity3,670 US gal (13,903 L)
StatusIn service
Type codesICAO B712; IATA 717
