ATR 72-600

The ATR 72-600 is the larger current ATR turboprop, with 72 seats at 29-inch pitch as standard and up to 78. Two Pratt and Whitney Canada PW127XT-M engines of 2,750 shaft horsepower on take-off drive six-blade propellers 3.93 meters across. ATR lists a maximum take-off weight of 23,000 kg, a maximum cruise speed of 270 knots true airspeed and a range of 683 nautical miles with a full cabin at long-range cruise speed. The airplane is 27.17 meters long, with a wingspan of 27.05 meters and a height of 7.65 meters. ATR also builds the 72-600F freighter.

Range
785 miles (683 nm, 1,260 km)
Cruise speed
270 knots (500 km/h)
Seats
72 in one class (up to 78)
Engines
Two Pratt and Whitney Canada PW127XT-M turboprops on the wings
Max takeoff weight
50,700 lb (23,000 kg)

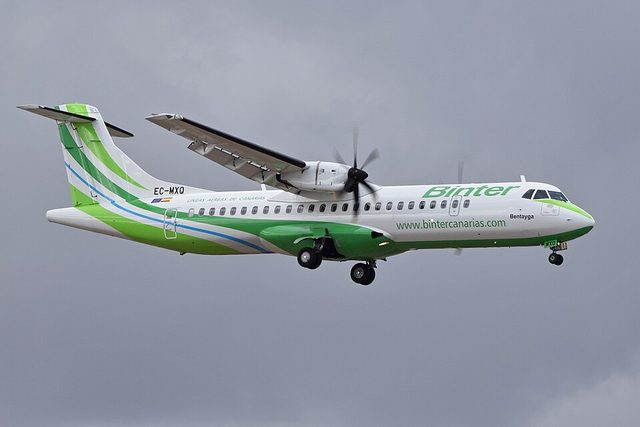

ATR 72-600
Photo: Alan Wilson from Peterborough, Cambs, UK, CC BY-SA 2.0
ATR 72-600 seen from above: length 89 ft 2 in (27.17 m), wingspan 88 ft 9 in (27.05 m)
ATR 72-600 seen from the side: height 25 ft 1 in (7.65 m)
Drawings: cwsi.net, from published dimensions (schematics, not to exact detail)

Photos from members

No member photos of this aircraft yet. Be the first to add one.

Specifications

Length89 ft 2 in (27.17 m)
Wingspan88 ft 9 in (27.05 m)
Height25 ft 1 in (7.65 m)
StatusIn service
Type codesICAO AT76; IATA AT7
