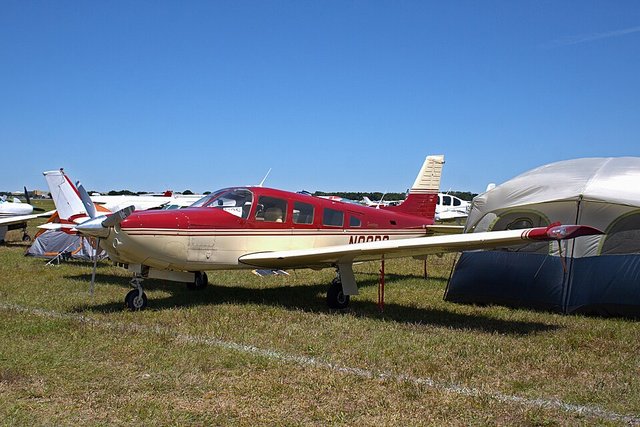

Piper PA-32 Saratoga (fixed and retractable gear)
The Saratoga is the PA-32 with a tapered wing and a 300 hp Lycoming IO-540-K1G5, built with fixed gear as the PA-32-301 and with retractable gear as the PA-32R-301 Saratoga SP and Saratoga II HP, each with a turbocharged version. The figures here are those of the retractable PA-32R-301 Saratoga II HP: span 11.03 m, length 8.50 m and height 2.59 m from the EASA data sheet, a maximum weight of 3,600 pounds and 102 US gallons usable. ICAO codes PA32 and P32R are shared with the Cherokee Six and Lance pages.
- Seats
- About 6 (up to 7)
- Engines
- One piston engine in the nose: Lycoming IO-540-K1G5
- Max takeoff weight
- 3,600 lb (1,633 kg)
Photos from members
No member photos of this aircraft yet. Be the first to add one.
Specifications
| Length | 27 ft 11 in (8.50 m) |
|---|---|
| Wingspan | 36 ft 2 in (11.03 m) |
| Height | 8 ft 6 in (2.59 m) |
| Fuselage width | 3 ft 11 in (1.20 m) |
| Fuel capacity | 100 US gal (386 L) |
| Status | In service |
| Type codes | ICAO PA32, P32R |
Private aircraft show specs only. No flight data is shown for them.
