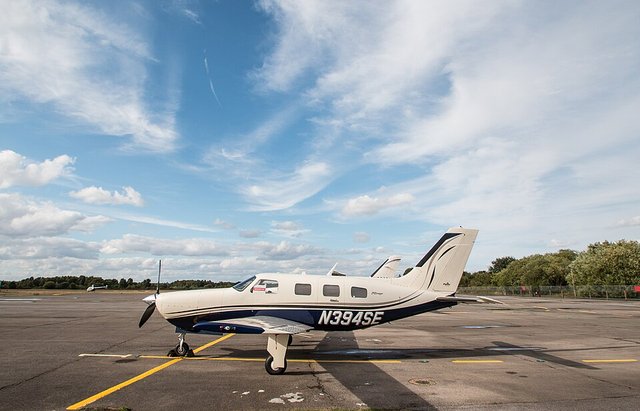

Piper PA-46-350P Malibu Mirage, M350 and PA-46R-350T Matrix
This page covers the PA-46-350P Malibu Mirage, approved in 1988, the M350 that Piper sells today, and the PA-46R-350T Matrix, a Mirage-based model without cabin pressurization. All have a 350 hp turbocharged Lycoming TIO-540-AE2A. The figures are the M350's from Piper: a maximum cruise speed of 213 knots true airspeed, a maximum weight of 4,340 pounds, 120 US gallons usable and a maximum altitude of 25,000 feet, with a pressurized cabin limit of 5.5 psi. ICAO code PA46 is shared with the 310P.
- Cruise speed
- 213 knots (390 km/h)
- Seats
- About 6
- Engines
- One piston engine in the nose: Lycoming TIO-540-AE2A
- Max takeoff weight
- 4,300 lb (1,969 kg)
Photos from members
No member photos of this aircraft yet. Be the first to add one.
Specifications
| Length | 28 ft 11 in (8.81 m) |
|---|---|
| Wingspan | 43 ft 0 in (13.11 m) |
| Height | 11 ft 3 in (3.44 m) |
| Fuselage width | 4 ft 3 in (1.30 m) |
| Ceiling | 25,000 ft (7,600 m) |
| Fuel capacity | 120 US gal (454 L) |
| Status | In service |
| Type codes | ICAO PA46 |
Private aircraft show specs only. No flight data is shown for them.
