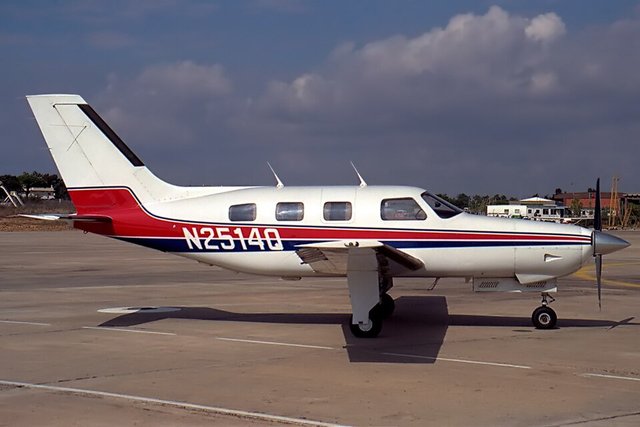

Piper PA-46-310P Malibu
The PA-46-310P Malibu is a six-seat, pressurized, low-wing single with retractable landing gear and a 310 hp turbocharged Continental TSIO-520-BE; the FAA approved it in 1983. It has a maximum weight of 4,100 pounds, 122 US gallons of fuel of which 120 are usable, and a maximum operating altitude of 25,000 feet. Its size is the EASA figure for the Malibu: span 13.11 m, length 8.81 m and height 3.44 m. ICAO code PA46 is shared with the Malibu Mirage and M350 page.
- Seats
- About 6
- Engines
- One piston engine in the nose: Continental TSIO-520-BE
- Max takeoff weight
- 4,100 lb (1,860 kg)
Photos from members
No member photos of this aircraft yet. Be the first to add one.
Specifications
| Length | 28 ft 11 in (8.81 m) |
|---|---|
| Wingspan | 43 ft 0 in (13.11 m) |
| Height | 11 ft 3 in (3.44 m) |
| Fuselage width | 4 ft 3 in (1.30 m) |
| Ceiling | 25,000 ft (7,600 m) |
| Fuel capacity | 120 US gal (454 L) |
| Status | In service |
| Type codes | ICAO PA46 |
Private aircraft show specs only. No flight data is shown for them.
