Gulfstream G500

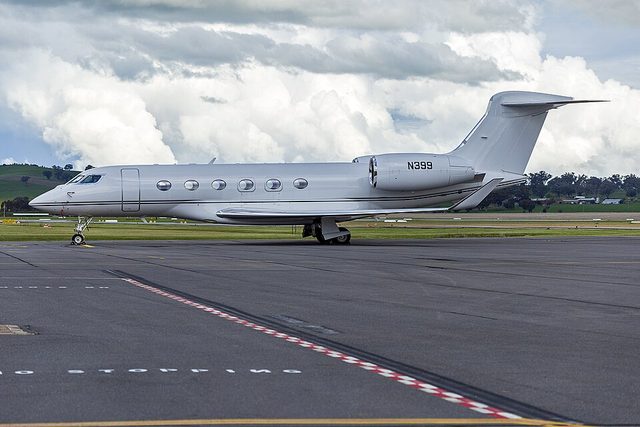

The G500 is Gulfstream's large-cabin jet with two Pratt and Whitney Canada PW814GA turbofans of 15,144 pounds of thrust each at the tail and a T-tail. Gulfstream lists a range of 5,300 nautical miles, NBAA IFR theoretical, at Mach 0.85 with eight passengers, three crew and NBAA IFR reserves, a top speed of Mach 0.925 and a ceiling of 51,000 feet. The cabin takes up to 19 passengers, the length is 27.79 meters, the wingspan 26.31 meters and the maximum takeoff weight 36,106 kg.
- Range
- 6,100 miles (5,300 nm, 9,820 km) with the load named above
- Seats
- Up to 19 passengers
- Engines
- Two Pratt & Whitney Canada PW814GA turbofans at the tail
- Max takeoff weight
- 79,600 lb (36,106 kg)
Photos from members
No member photos of this aircraft yet. Be the first to add one.
Specifications
| Length | 91 ft 2 in (27.79 m) |
|---|---|
| Wingspan | 86 ft 4 in (26.31 m) |
| Height | 25 ft 6 in (7.77 m) |
| Ceiling | 51,000 ft (15,500 m) |
| Status | In service |
| Type codes | ICAO GA5C |
Private aircraft show specs only. No flight data is shown for them.
