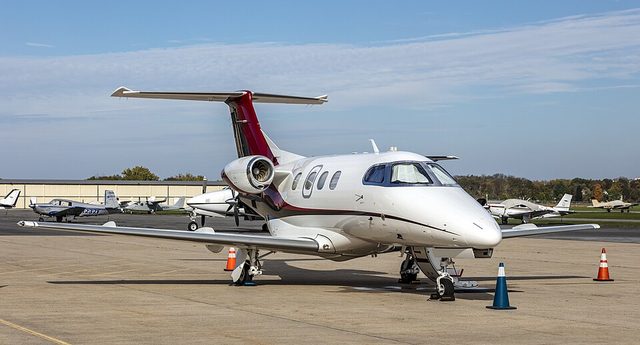

Embraer Phenom 100EX
The Phenom 100EX is the single-pilot light jet in Embraer's range, with two Pratt and Whitney Canada PW617F-E turbofans on the rear fuselage and a T-tail. Embraer lists a range of 1,178 nautical miles with four occupants and NBAA IFR reserves, and eight occupants as the most the cabin takes. The EASA data sheet limits the seats to six passengers and sets the maximum takeoff weight at 4,800 kg and the ceiling at 41,000 feet. It is one of four Embraer jets in the company's current brochure.
- Range
- 1,355 miles (1,178 nm, 2,180 km) with the load named above
- Seats
- Up to 6 passengers
- Engines
- Two Pratt and Whitney Canada PW617F-E turbofans at the tail
- Max takeoff weight
- 10,600 lb (4,800 kg)
Photos from members
No member photos of this aircraft yet. Be the first to add one.
Specifications
| Length | 42 ft 1 in (12.82 m) |
|---|---|
| Wingspan | 40 ft 4 in (12.30 m) |
| Height | 14 ft 3 in (4.35 m) |
| Ceiling | 41,000 ft (12,500 m) |
| Status | In service |
| Type codes | ICAO E50P |
Private aircraft show specs only. No flight data is shown for them.
