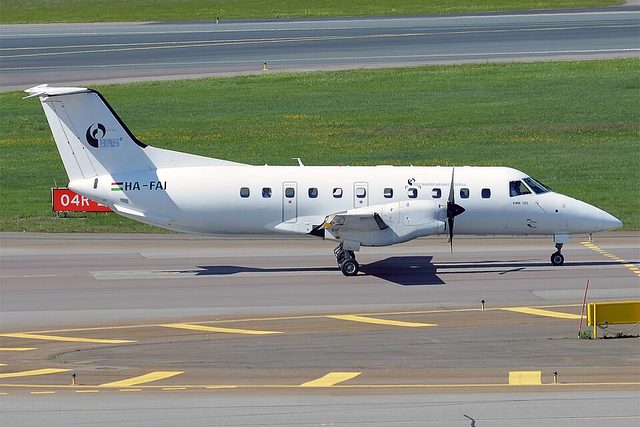

Embraer EMB-120 Brasilia
The EMB-120 Brasilia is a pressurized, T-tail commuter turboprop with up to 30 passengers. The figures here are for the EMB-120ER, with a maximum take-off weight of 11,990 kg; the basic EMB-120 and EMB-120RT are limited to 11,500 kg. Two Pratt and Whitney Canada PW118, PW118A or PW118B engines drive four-blade propellers 3.2 meters across, where the basic airplane has PW115s. It is 20.00 meters long, has a wingspan of 19.78 meters and stands 6.35 meters high. Usable fuel is 3,340 liters and the maximum operating altitude is 32,000 feet.
- Engines
- Two Pratt and Whitney Canada PW118, PW118A or PW118B (PW115 on the basic EMB-120) turboprops on the wings
- Max takeoff weight
- 26,400 lb (11,990 kg)
Photos from members
No member photos of this aircraft yet. Be the first to add one.
Specifications
| Length | 65 ft 7 in (20.00 m) |
|---|---|
| Wingspan | 64 ft 11 in (19.78 m) |
| Height | 20 ft 10 in (6.35 m) |
| Ceiling | 32,000 ft (9,800 m) |
| Fuel capacity | 880 US gal (3,340 L) |
| Status | Still flying with a few operators |
| Type codes | ICAO E120 |
