Embraer E195-E2

The E195-E2 is the largest Embraer airliner, certified as the ERJ 190-400. At 136 ft 6 in it is almost 10 feet longer than the first E195, and its wing spans 115 ft 3 in. Pratt & Whitney PW1921G or PW1923G geared turbofans power it. Embraer's planning manual gives 138 seats at 29-inch pitch as the nominal cabin and 146 as the maximum, and its three-class sample seats 120. Embraer quotes a range of about 3,000 nautical miles with a full cabin, and a top take-off weight of 62.5 tonnes.

Range
3,450 miles (3,000 nm, 5,560 km)
Engines
Two Pratt & Whitney PW1921G, PW1923G or PW1923G-A turbofans under the wings
Max takeoff weight
138,000 lb (62,500 kg)

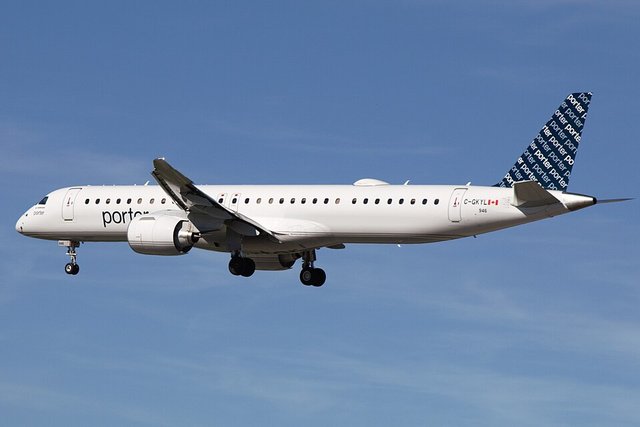

Embraer E195-E2
Photo: Liam Thompson, CC BY-SA 4.0
Embraer E195-E2 seen from above: length 136 ft 6 in (41.60 m), wingspan 115 ft 3 in (35.12 m)
Embraer E195-E2 seen from the side: height 35 ft 4 in (10.78 m)
Drawings: cwsi.net, from published dimensions (schematics, not to exact detail)

Photos from members

No member photos of this aircraft yet. Be the first to add one.

Specifications

Length136 ft 6 in (41.60 m)
Wingspan115 ft 3 in (35.12 m)
Height35 ft 4 in (10.78 m)
Fuselage width9 ft 11 in (3.01 m)
Ceiling41,000 ft (12,500 m)
Fuel capacity4,510 US gal (17,060 L)
StatusIn service
Type codesICAO E295; IATA 295
