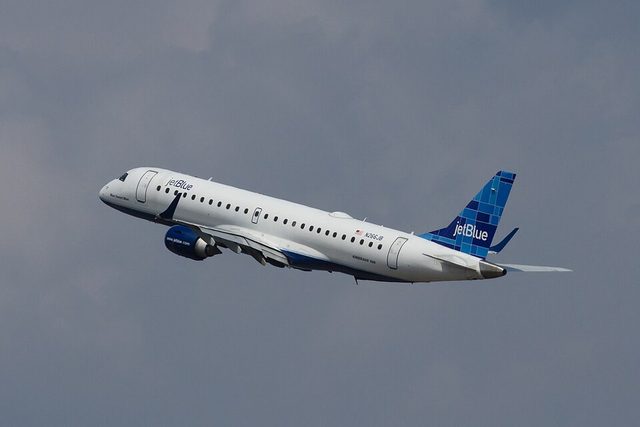

Embraer E190
The E190 is the larger E-Jet, certified as the ERJ 190-100. Compared with the E170 and E175 it has a bigger wing, spanning 94 ft 3 in over the winglets, stronger General Electric CF34-10E engines and a 118 ft 11 in fuselage. Embraer's planning manual describes a standard cabin of 98 seats at 32-inch pitch, and the type is certified for up to 114 passengers. The Advanced Range version weighs up to 51.8 tonnes at take-off, and Embraer quotes a range of up to 2,450 nautical miles with a full cabin.
- Range
- 2,820 miles (2,450 nm, 4,540 km)
- Engines
- Two General Electric CF34-10E5, CF34-10E5A1, CF34-10E6, CF34-10E6A1 or CF34-10E7 turbofans under the wings
- Max takeoff weight
- 114,000 lb (51,800 kg)
Photos from members
No member photos of this aircraft yet. Be the first to add one.
Specifications
| Length | 118 ft 11 in (36.24 m) |
|---|---|
| Wingspan | 94 ft 3 in (28.72 m) |
| Height | 34 ft 7 in (10.55 m) |
| Fuselage width | 9 ft 11 in (3.01 m) |
| Ceiling | 41,000 ft (12,500 m) |
| Fuel capacity | 4,230 US gal (16,029 L) |
| Status | In service |
| Type codes | ICAO E190; IATA E90 |
