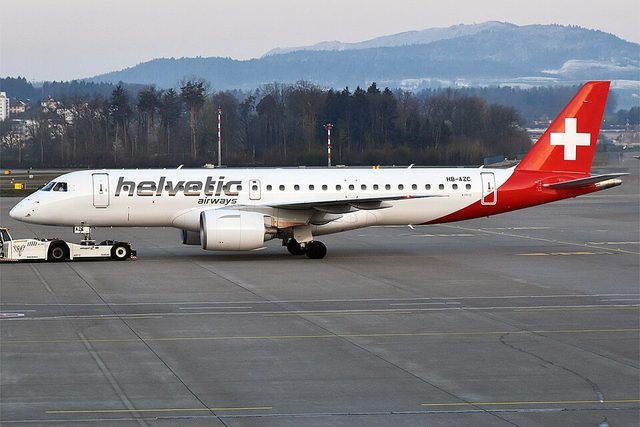

Embraer E190-E2
The E190-E2 was the first of the second-generation E-Jets, certified as the ERJ 190-300. It is the same 118 ft 11 in length as the original E190 but has a new wing spanning 110 ft 8 in and Pratt & Whitney PW1919G or PW1922G geared turbofans. Embraer's planning manual shows 104 seats at 31-inch pitch as the nominal cabin and 114 as the maximum, and its three-class sample layout seats 97. With every seat filled it can fly about 2,950 nautical miles, according to Embraer.
- Range
- 3,395 miles (2,950 nm, 5,460 km)
- Engines
- Two Pratt & Whitney PW1919G or PW1922G turbofans under the wings
- Max takeoff weight
- 124,000 lb (56,400 kg)
Photos from members
No member photos of this aircraft yet. Be the first to add one.
Specifications
| Length | 118 ft 11 in (36.24 m) |
|---|---|
| Wingspan | 110 ft 8 in (33.72 m) |
| Height | 35 ft 11 in (10.95 m) |
| Fuselage width | 9 ft 11 in (3.01 m) |
| Ceiling | 41,000 ft (12,500 m) |
| Fuel capacity | 4,440 US gal (16,800 L) |
| Status | In service |
| Type codes | ICAO E290; IATA 290 |
