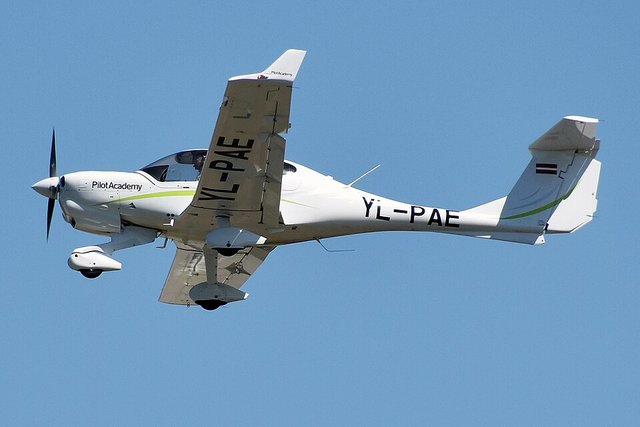

Diamond DA40 NG
The DA40 NG, approved by the FAA in 2011, is the DA40 with a 168 hp Austro Engine AE300, a turbocharged diesel that burns jet fuel. The figures are from the FAA and EASA data sheets and Diamond's specifications: a maximum weight of 2,888 pounds with the approved modification, 39 US gallons of usable fuel with the long-range tank, a maximum operating altitude of 16,400 feet and a maximum cruise of 154 knots true airspeed at maximum continuous power at 16,000 feet. It seats four.
- Cruise speed
- 154 knots (290 km/h)
- Seats
- About 4
- Engines
- One piston engine in the nose: Austro Engine AE300 (E4)
- Max takeoff weight
- 2,900 lb (1,310 kg)
Photos from members
No member photos of this aircraft yet. Be the first to add one.
Specifications
| Length | 26 ft 5 in (8.06 m) |
|---|---|
| Wingspan | 38 ft 2 in (11.63 m) |
| Height | 6 ft 6 in (1.97 m) |
| Fuselage width | 3 ft 9 in (1.15 m) |
| Ceiling | 16,400 ft (5,000 m) |
| Fuel capacity | 40 US gal (148 L) |
| Status | In service |
| Type codes | ICAO DA40 |
Private aircraft show specs only. No flight data is shown for them.
