Aircraft › De Havilland Canada › De Havilland Canada Dash 8 › De Havilland Canada Dash 8-300

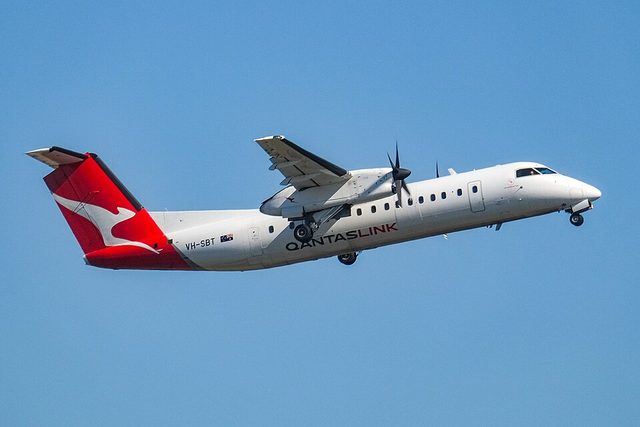

De Havilland Canada Dash 8-300
The Dash 8-300 is the stretched Dash 8, certified in Canada in 1989 as the DHC-8-301, with the -311, -314 and -315 following. It carries up to 56 passengers. Its length is 25.68 meters, its wingspan 27.43 meters and its height 7.49 meters. Two Pratt and Whitney Canada PW123, PW123B or PW123E engines drive Hamilton Sundstrand propellers 3.96 meters across. The maximum take-off weight is 18,643 kg on the basic type and up to 19,505 kg on the heavier options, and the maximum operating altitude is 25,000 feet.
- Engines
- Two Pratt and Whitney Canada PW123, PW123B or PW123E turboprops on the wings
- Max takeoff weight
- 41,100 lb (18,643 kg)
Photos from members
No member photos of this aircraft yet. Be the first to add one.
Specifications
| Length | 84 ft 3 in (25.68 m) |
|---|---|
| Wingspan | 90 ft 0 in (27.43 m) |
| Height | 24 ft 7 in (7.49 m) |
| Ceiling | 25,000 ft (7,600 m) |
| Status | Still flying with a few operators |
| Type codes | ICAO DH8C; IATA DH3 |
