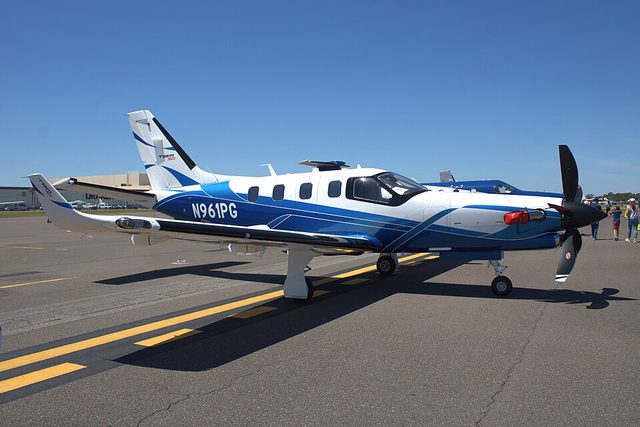

Daher TBM 960
The TBM 960 is the TBM with the digitally controlled Pratt and Whitney Canada PT6E-66XT turboprop of 895 shaft horsepower and a five-blade Hartzell propeller. Daher lists a top cruise speed of 330 knots at 28,000 feet and a range of 1,730 nautical miles. That range is the maximum with full fuel, one pilot, no passengers and a 45 minute fuel reserve, at 31,000 feet and the long-range speed of 252 knots. The maximum takeoff weight is 3,454 kg and the certified ceiling is 31,000 feet.
- Range
- 1,990 miles (1,730 nm, 3,200 km) with the load named above
- Cruise speed
- 330 knots (610 km/h)
- Seats
- Up to 5 passengers
- Engines
- One Pratt and Whitney Canada PT6E-66XT turboprop in the fuselage
- Max takeoff weight
- 7,600 lb (3,454 kg)
Photos from members
No member photos of this aircraft yet. Be the first to add one.
Specifications
| Length | 35 ft 3 in (10.74 m) |
|---|---|
| Wingspan | 42 ft 1 in (12.83 m) |
| Height | 14 ft 3 in (4.35 m) |
| Ceiling | 31,000 ft (9,400 m) |
| Fuel capacity | 290 US gal (1,106 L) |
| Status | In service |
| Type codes | ICAO TBM9 |
Private aircraft show specs only. No flight data is shown for them.
