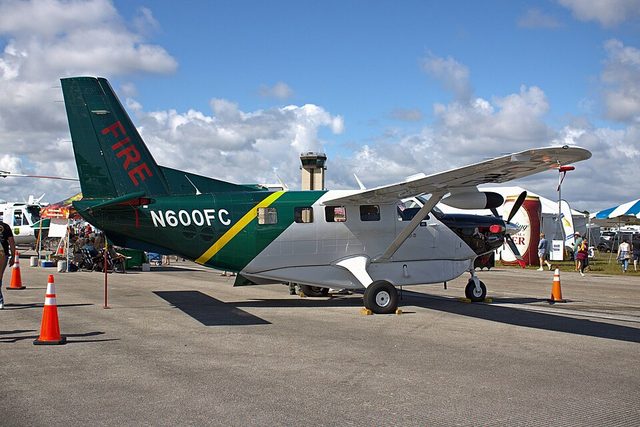

Daher Kodiak 100
The Kodiak 100 has a Pratt and Whitney Canada PT6A-34 of 750 shaft horsepower and a five-blade Hartzell propeller. Daher lists a top cruise speed of 183 knots and a range of 1,132 nautical miles, flown at the maximum range cruise speed of 135 knots at 12,000 feet with a 45 minute reserve and no stated passenger load. The EASA data sheet gives a length of 10.42 meters, a wingspan of 13.72 meters, a height of 4.48 meters and a maximum takeoff weight of 3,291 kg. The maximum altitude with oxygen is 25,000 feet.
- Range
- 1,305 miles (1,132 nm, 2,100 km) with the load named above
- Cruise speed
- 183 knots (340 km/h)
- Engines
- One Pratt and Whitney Canada PT6A-34 turboprop in the fuselage
- Max takeoff weight
- 7,300 lb (3,291 kg)
Photos from members
No member photos of this aircraft yet. Be the first to add one.
Specifications
| Length | 34 ft 2 in (10.42 m) |
|---|---|
| Wingspan | 45 ft 0 in (13.72 m) |
| Height | 14 ft 8 in (4.48 m) |
| Ceiling | 25,000 ft (7,600 m) |
| Fuel capacity | 310 US gal (1,177 L) |
| Status | In service |
| Type codes | ICAO K100 |
Private aircraft show specs only. No flight data is shown for them.
