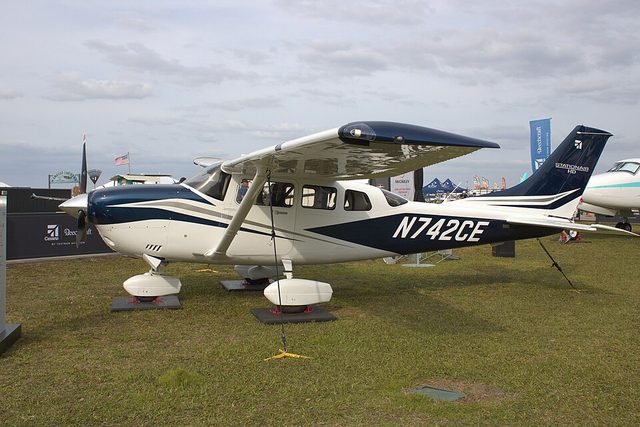

Cessna T206H, TU206 Turbo Stationair
This page covers the turbocharged Stationairs: the TU206 and TP206 models with a Continental TSIO-520 of 285 hp to 310 hp, and the T206H with a Lycoming TIO-540-AJ1A of 310 hp. The figures are those of the older T206H handbook, which three copies agree on: a maximum weight of 3,600 pounds, 87 gallons of usable fuel, a 75 percent power cruise of 164 knots at 20,000 feet, a range of 559 nautical miles with a 45 minute reserve, and a service ceiling of 27,000 feet. The current Turbo Stationair HD has a higher takeoff weight.
- Range
- 645 miles (559 nm, 1,040 km) with the load named above
- Cruise speed
- 164 knots (300 km/h)
- Seats
- About 6
- Engines
- One piston engine in the nose: Continental TSIO-520 series (TU206 and TP206, 285 to 310 hp) and Lycoming TIO-540-AJ1A (T206H, 310 hp)
- Max takeoff weight
- 3,600 lb (1,633 kg)
Photos from members
No member photos of this aircraft yet. Be the first to add one.
Specifications
| Length | 28 ft 3 in (8.61 m) |
|---|---|
| Wingspan | 36 ft 0 in (10.97 m) |
| Height | 9 ft 3 in (2.83 m) |
| Fuselage width | 4 ft 1 in (1.25 m) |
| Ceiling | 27,000 ft (8,200 m) |
| Fuel capacity | 90 US gal (329 L) |
| Status | In service |
| Type codes | ICAO T206 |
Private aircraft show specs only. No flight data is shown for them.
Sources
- FAA Type Certificate Data Sheet A4CE, Cessna 206 series
- Cessna Model T206H NAV III Pilot's Operating Handbook (copy hosted by kerrville.cap.gov)
- Cessna Model T206H NAV III Pilot's Operating Handbook, Revision 1 (second copy, txwg.cap.gov, Civil Air Patrol)
- Cessna Model T206H NAV III Pilot's Operating Handbook, Revision 4 (third copy, saltlakesenior.cap.gov, Civil Air Patrol)
- Textron Aviation, Turbo Stationair HD product card
- ICAO Doc 8643, Aircraft Type Designators
