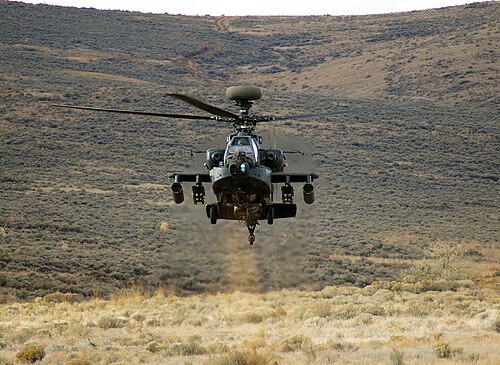

Boeing AH-64E Apache
The AH-64E Apache is the Army's modernized attack helicopter, flown by two crew. It can command unmanned aircraft to extend its sensor reach, and it shares the battlespace picture over Link 16. Its ordnance is 16 Hellfire missiles, 76 2.75-inch rockets and 1,200 rounds for the 30 mm chain gun, which fires 600 to 650 rounds a minute. Boeing quotes a maximum level flight speed above 150 knots, a service ceiling of 20,000 feet, a primary mission gross weight of 15,075 pounds, a maximum operating weight of 23,000 pounds and a rotor diameter of 48 feet. ICAO files it under the type code H64.
- Engines
- Two turboshafts mounted above the fuselage
- Max takeoff weight
- 23,000 lb (10,433 kg)
Photos from members
No member photos of this aircraft yet. Be the first to add one.
Specifications
| Length | 48 ft 3 in (14.70 m) |
|---|---|
| Height | 15 ft 6 in (4.72 m) |
| Ceiling | 20,000 ft (6,100 m) |
| Status | In service |
| Type codes | ICAO H64 |
Who flies it
- US Army
Service branches, from the services' own fact sheets. No flight data is shown for military aircraft.
