Boeing 757-200

The 757-200 is the original passenger version of the 757. Boeing's typical layout seats 186 in two classes, six abreast with one aisle, and the version with four doors a side is certified for up to 239. With the heaviest take-off weight option and a full typical load it can fly about 3,900 nautical miles. Airlines chose Rolls-Royce RB211-535 or Pratt & Whitney PW2037 and PW2040 engines. Many were fitted for extended operations over water, with a backup hydraulic generator and extra equipment cooling, so they can fly routes far from a diversion airport.

Range
4,490 miles (3,900 nm, 7,220 km)
Cruise speed
Mach 0.80, 459 knots (850 km/h)
Seats
About 186 in two classes (up to 239)
Engines
Two Rolls-Royce RB211-535 or Pratt & Whitney PW2037 or PW2040 turbofans under the wings
Max takeoff weight
255,000 lb (115,666 kg)

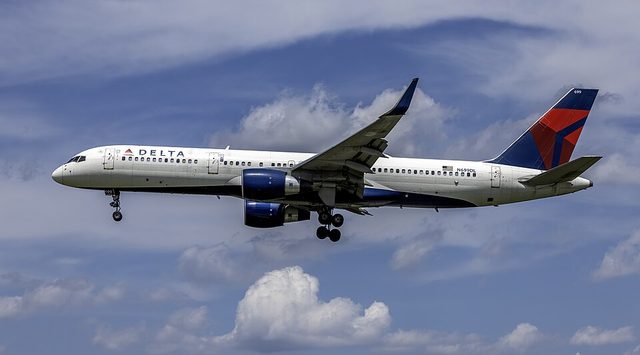

Boeing 757-200
Photo: Acroterion, CC BY-SA 4.0
Boeing 757-200 seen from above: length 155 ft 3 in (47.32 m), wingspan 124 ft 10 in (38.05 m)
Boeing 757-200 seen from the side: height 45 ft 1 in (13.74 m)
Top view: cwsi.net, from published dimensions (a schematic, not to exact detail). Side view: cwsi.net

Photos from members

No member photos of this aircraft yet. Be the first to add one.

Specifications

Length155 ft 3 in (47.32 m)
Wingspan124 ft 10 in (38.05 m)
Height45 ft 1 in (13.74 m)
Fuselage width12 ft 4 in (3.76 m)
Ceiling42,000 ft (12,800 m)
Fuel capacity11,280 US gal (42,684 L)
StatusIn service
Type codesICAO B752; IATA 752
