Boeing 737-400

The 737-400 is the longest 737 Classic, certified by the FAA in September 1988. It adds 120 inches to the 737-300, a 72-inch section ahead of the wing and a 48-inch one behind, for a length of 119 ft 7 in on the same 94 ft 9 in wing. It uses CFM56-3B2 or CFM56-3C engines. Boeing's two-class layout seats 146, and with its two pairs of overwing exits it is certified for up to 188 passengers. Its heaviest take-off weight is 150,000 pounds. Some have since been converted to freighters: the 737-400 freighters of Aloha Air Cargo have ten main-deck positions for 88 by 125 inch cargo containers.

Seats
About 146 in two classes (up to 188)
Engines
Two CFM International CFM56-3B2 or CFM56-3C turbofans under the wings
Max takeoff weight
150,000 lb (68,039 kg)

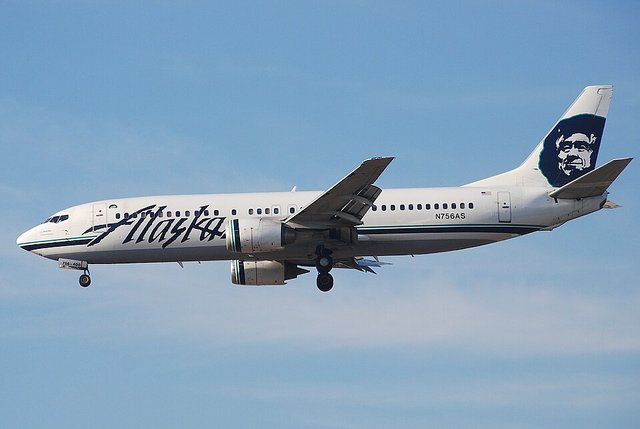

Boeing 737-400
Photo: Aero Icarus from Zurich, Switzerland, CC BY-SA 2.0
Boeing 737-400 seen from above: length 119 ft 7 in (36.45 m), wingspan 94 ft 9 in (28.88 m)
Boeing 737-400 seen from the side: height 36 ft 7 in (11.15 m)
Top view: cwsi.net, from published dimensions (a schematic, not to exact detail). Side view: cwsi.net

Photos from members

No member photos of this aircraft yet. Be the first to add one.

Specifications

Length119 ft 7 in (36.45 m)
Wingspan94 ft 9 in (28.88 m)
Height36 ft 7 in (11.15 m)
Fuselage width12 ft 4 in (3.76 m)
Fuel capacity5,310 US gal (20,102 L)
StatusStill flying with a few operators
Type codesICAO B734; IATA 734
