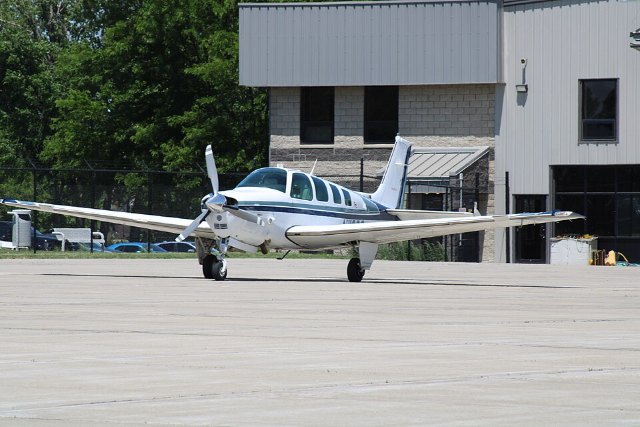

Beechcraft Bonanza A36TC and B36TC
The A36TC and B36TC are the turbocharged Bonanza 36, with a 300 hp Continental TSIO-520. The FAA approved the A36TC in 1978, with a maximum weight of 3,650 pounds, and the B36TC in 1982. The figures are the B36TC's, from the FAA data sheet: a 300 hp Continental TSIO-520-UB, a maximum weight of 3,850 pounds, 102 US gallons of usable fuel in leading-edge tanks and a maximum operating altitude of 25,000 feet. It seats four, and up to six with the optional seats.
- Seats
- About 4 (up to 6)
- Engines
- One piston engine in the nose: Continental TSIO-520-UB (B36TC); TSIO-520-U or TSIO-520-UB (A36TC)
- Max takeoff weight
- 3,800 lb (1,746 kg)
Photos from members
No member photos of this aircraft yet. Be the first to add one.
Specifications
| Fuselage width | 3 ft 11 in (1.20 m) |
|---|---|
| Ceiling | 25,000 ft (7,600 m) |
| Fuel capacity | 100 US gal (386 L) |
| Status | In service |
| Type codes | ICAO BT36 |
Private aircraft show specs only. No flight data is shown for them.
