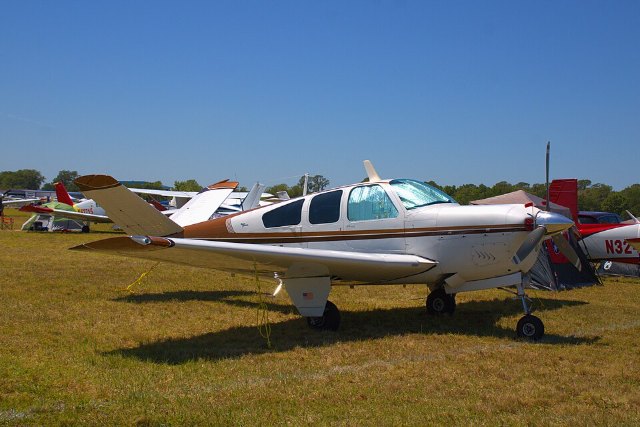

Beechcraft Bonanza 35 to S35
This page covers the V-tail Bonanza from the Model 35, approved by the FAA in 1947 with a 185 hp Continental E-185, through the A35 to H35, J35, K35, M35, N35 and P35 to the S35 of 1964. The figures are the S35's, from the FAA data sheet: a 285 hp Continental IO-520-B, a maximum weight of 3,300 pounds and 44 US gallons of usable fuel with the standard tanks, or 74 with the optional tanks. It seats four, and up to six with the optional seats. The later V35 series has its own page.
- Seats
- About 4 (up to 6)
- Engines
- One piston engine in the nose: Continental IO-520-B or IO-520-BA (S35); Continental E-185, E-225, O-470 and IO-470 on earlier models
- Max takeoff weight
- 3,300 lb (1,497 kg)
Photos from members
No member photos of this aircraft yet. Be the first to add one.
Specifications
| Fuselage width | 3 ft 11 in (1.20 m) |
|---|---|
| Fuel capacity | 40 US gal (167 L) |
| Status | In service |
| Type codes | ICAO BE35 |
Private aircraft show specs only. No flight data is shown for them.
