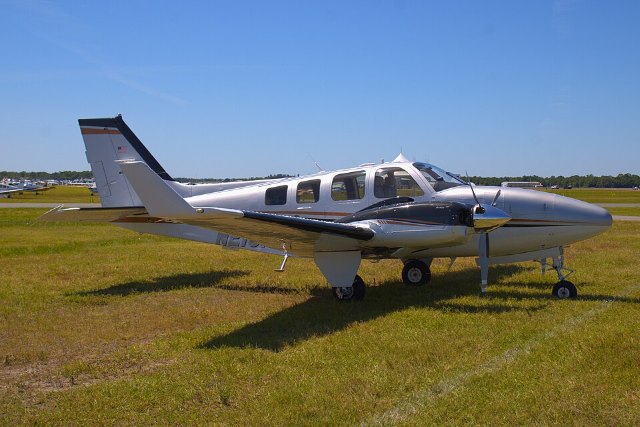

Beechcraft Baron 58 and G58
The Baron 58 is the long-cabin Baron, with two 285 hp Continental IO-520 engines on earlier aircraft and two 300 hp IO-550-C on later ones. The G58, approved by the FAA in 2005, has a Garmin G1000 glass cockpit. The figures are the G58's, from the FAA and EASA data sheets and Textron Aviation's specifications: a maximum weight of 5,500 pounds, 194 US gallons of usable fuel with the wingtip tanks, a maximum operating altitude of 20,688 feet and a maximum cruise speed of 202 knots true airspeed. It seats six.
- Cruise speed
- 202 knots (370 km/h)
- Seats
- About 6
- Engines
- Two piston engines on the wings: Continental IO-550-C (G58 and later 58s); Continental IO-520-C or IO-520-CB on earlier 58s
- Max takeoff weight
- 5,500 lb (2,495 kg)
Photos from members
No member photos of this aircraft yet. Be the first to add one.
Specifications
| Length | 29 ft 10 in (9.09 m) |
|---|---|
| Wingspan | 37 ft 10 in (11.53 m) |
| Height | 9 ft 9 in (2.97 m) |
| Fuselage width | 4 ft 1 in (1.25 m) |
| Ceiling | 20,688 ft (6,300 m) |
| Fuel capacity | 190 US gal (734 L) |
| Status | In service |
| Type codes | ICAO BE58 |
Private aircraft show specs only. No flight data is shown for them.
