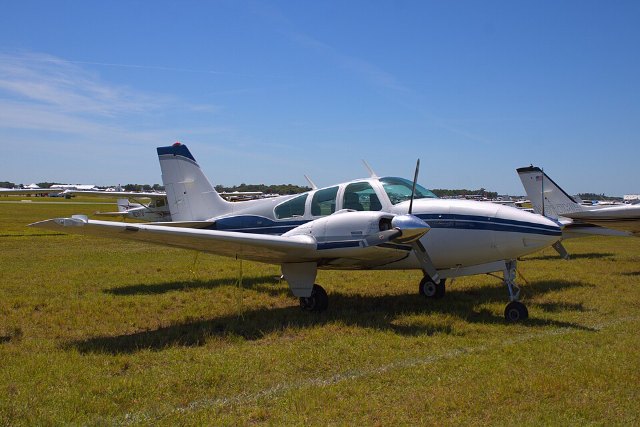

Beechcraft Baron 55 (95-55 to E55)
This page covers the short-cabin Baron, from the 95-55 approved by the FAA in 1960 with two 260 hp Continental IO-470-L engines, through the A55, B55, C55 and D55, to the E55 of 1969. The figures are the E55's, from the FAA data sheet: two 285 hp Continental IO-520-C or IO-520-CB engines, a maximum weight of 5,300 pounds and 106 US gallons of usable fuel in the standard main and auxiliary tanks, with larger optional tanks. It seats four, and up to six with the optional seats.
- Seats
- About 4 (up to 6)
- Engines
- Two piston engines on the wings: Continental IO-520-C or IO-520-CB (E55); Continental IO-470-L on early Barons
- Max takeoff weight
- 5,300 lb (2,404 kg)
Photos from members
No member photos of this aircraft yet. Be the first to add one.
Specifications
| Fuselage width | 4 ft 1 in (1.25 m) |
|---|---|
| Fuel capacity | 110 US gal (401 L) |
| Status | In service |
| Type codes | ICAO BE55 |
Private aircraft show specs only. No flight data is shown for them.
