Airbus A330-200

The A330-200 is the shorter A330, 193 ft 0 in long, about 16 feet shorter than the A330-300, and built for longer routes: it carries 139,090 litres of fuel as standard, against 97,530 for the basic A330-300. Airbus's planning layout seats 247 in two classes, and it is certified for up to 406 passengers. It takes off at up to 533,519 pounds and flies on General Electric CF6-80E1, Pratt & Whitney PW4000 or Rolls-Royce Trent 700 engines. It shares the ICAO code A332 with the A330-200F freighter.

Seats
About 247 in two classes (up to 406)
Engines
Two General Electric CF6-80E1, Pratt & Whitney PW4000 or Rolls-Royce Trent 700 turbofans under the wings
Max takeoff weight
534,000 lb (242,000 kg)

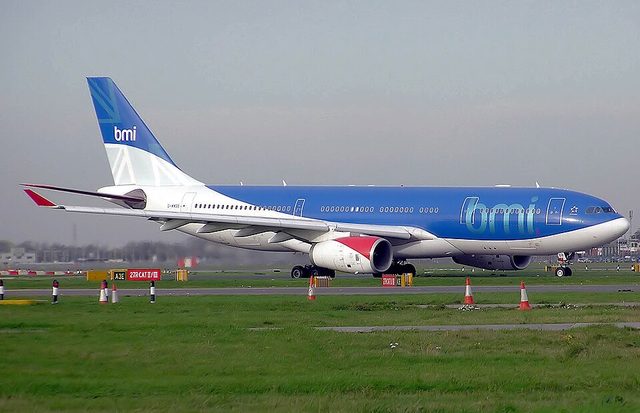

Airbus A330-200
Photo: Adrian Pingstone, Public domain
Airbus A330-200 seen from above: length 193 ft 0 in (58.82 m), wingspan 197 ft 10 in (60.30 m)
Airbus A330-200 seen from the side: height 59 ft 10 in (18.23 m)
Drawings: cwsi.net, from published dimensions (schematics, not to exact detail)

Photos from members

No member photos of this aircraft yet. Be the first to add one.

Specifications

Length193 ft 0 in (58.82 m)
Wingspan197 ft 10 in (60.30 m)
Height59 ft 10 in (18.23 m)
Fuselage width18 ft 6 in (5.64 m)
Ceiling41,450 ft (12,600 m)
Fuel capacity36,740 US gal (139,090 L)
StatusIn service
Type codesICAO A332; IATA 332

Who flies it now

These are flights filed as A332 (A330-200 or A330-200F): one type code covers both, so they can include either. How they differ

1,080 flights by other operators

From flights seen in US airspace in the last 14 days (public flight data).
